Corrosion Resistant Hex Slotted Nuts

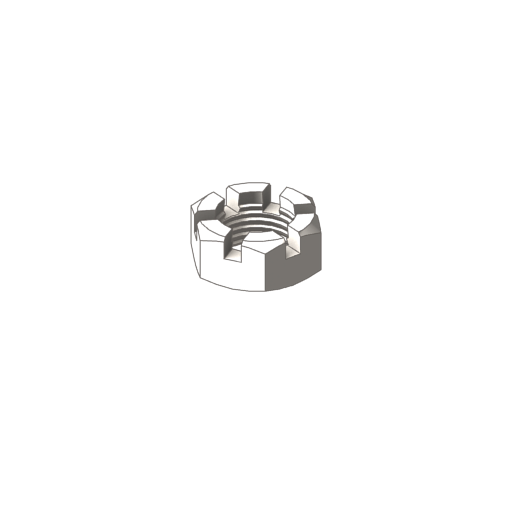

United Titanium manufactures and inventories hex slotted nuts from 1/4 to 1-12” diameter. We also have metric hex slotted nuts available upon request. These hex slotted nuts are manufactured to the most recent ASME B18.2.2, IFI, or customer stated standards. Our inventory is home to thousands of these hex slotted nuts in any of our various materials and sizes.

Hex Slotted Nuts Specifications

  • MIL-DTL-1222, if requested
  • MIL-S-1222, if requested
  • STANDARD (ASME/ANSI)
  • METRIC (IFI)

Start RFQ Now keyboard_arrow_right

Dimensions

   F G H T S
NOMINAL SIZE  WIDTH ACROSS FLATS WIDTH ACROSS
CORNERS
THICKNESS UNSLOTTED THICKNESS WIDTH OF SLOT RUNOUT
OF
BREARING SURFACE
FIM
BASIC MAJOR DIA. OF THREAD BASIC MAX MIN MAX MIN BASIC MAX MIN BASIC MAX MAX MIN MAX
1/4 0.2500 7/16 0.438 0.428 0.505 0.488 7/32 0.226 0.212 0.14 0.12 0.10 0.07 0.015
5/16 0.3125 1/2 0.500 0.489 0.577 0.557 17/64 0.273 0.258 0.18 0.16 0.12 0.09 0.016
3/8 0.3750 9/16 0.562 0.551 0.650 0.628 21/64 0.337 0.320 0.21 0.19 0.15 0.12 0.018
7/16 0.4375 11/16 0.688 0.675 0.794 0.768 3/8 0.385 0.365 0.23 0.21 0.15 0.12 0.018
1/2 0.5000 3/4 0.750 0.736 0.866 0.840 7/16 0.448 0.427 0.29 0.27 0.18 0.15 0.019
9/16 0.5625 7/8 0.875 0.861 1.010 0.982 31/64 0.496 0.473 0.31 0.29 0.18 0.15 0.020
5/8 0.6250 15/16 0.938 0.922 1.083 1.051 35/64 0.559 0.535 0.34 0.32 0.24 0.18 0.021
3/4 0.7500 1-1/8 1.125 1.088 1.299 1.240 41/64 0.665 0.617 0.40 0.38 0.24 0.18 0.023
7/8 0.8750 1-5/16 1.312 1.269 1.516 1.447 3/4 0.776 0.724 0.52 0.49 0.24 0.18 0.025
1 1.0000 1-1/2 1.500 1.450 1.732 1.653 55/64 0.887 0.831 0.59 0.56 0.30 0.24 0.027
1-1/8 1.1250 1-11/16 1.688 1.631 1.949 1.859 31/32 0.999 0.939 0.64 0.61 0.33 0.24 0.030
1-1/4 1.2500 1-7/8 1.875 1.812 2.165 2.066 1-1/16 1.094 1.030 0.70 0.67 0.40 0.31 0.033
1-3/8 1.3750 2-1/16 2.062 1.994 2.382 2.273 1-11/64 1.206 1.138 0.82 0.78 0.40 0.31 0.036
1-1/2 1.5000 2-1/4 2.250 2.175 2.598 2.480 1-9/32 1.317 1.245 0.86 0.82 0.46 0.37 0.039

Materials

TITANIUM ZIRCONIUM ALLOY TANTALUM
CP-TI (GR. 2) 702 600 UT35N
6AL-4V (GR. 5) 705 625 556
TI-PD (GR. 7)   825 718
TI CODE 12 (GR. 12)   C276 AL6XN
6AL-4V ELI (GR. 23)   C22 2205
    B2 686
    B3 255
