Corrosion Resistant Pipe Tees

United Titanium carries a wide selection of pipe tees manufactured in titanium grades 2 and 7 or zirconium grade 702. Our inventory includes butt weld and reducing pipe tees. We carry a full linebutt weld long branch, short outlet and reducing tees, which provide substantial cost savings compared to full tees. All styles are available in sizes ranging from 1/2” to 8” in diameter. Find the tee to fit your project needs by searching our inventory. For custom specifications, such as socket weld and threaded tees, submit a request for a quote

Dimensions

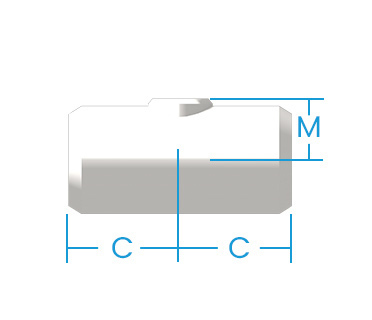

Short Outlet Reducing Tee Dimensions

Nominal Size Dim C Dim M* Sch 10 Sch 40
      Weight Weight
1 x 1 x 1/2 1.50 0.72 0.2 0.4
1 x 1 x 3/4 1.50 0.72 0.2 0.4
1 1/2 x 1 1/2 x 1/2 2.25 1.08 0.5 0.65
1 1/2 x 1 1/2 x 3/4 2.25 1.08 0.5 0.65
1 1/2 x 1 1/2 x 1 2.25 1.08 0.5 0.65
2 x 2 x 3/4 2.50 1.32 0.7 1
2 x 2 x 1 2.50 1.25 0.7 1
2 x 2 x 1-1/2 2.50 1.08 0.7 1
3 x 3 x 1-1/2 3.38 1.88 1.5 2.7
3 x 3 x 2 3.38 1.88 1.5 2.7
4 x 4 x 2 4.12 2.38 2.3 4.5
4 x 4 x 3 4.12 2.38 2.3 4.5
6 x 6 x 3 5.62 3.45 5.5
6 x 6 x 4 5.62 3.45 5.5

*M dimension not to Ansi B16.9

Reducing Tee Short Outlet Dimensions

Nominal Size Dim C Dim M* Sch 10 Sch 40 Sch 80
      Weight Weight Weight
3/4 x 3/4 x 1/2 1.12 0.64 0.16 0.25 0.35
1 x 1 x 1/2 1.50 0.79 0.30 0.35 0.50
1 x 1 x 3/4 1.50 0.79 0.30 0.35 0.50
1-1/2 x 1-1/2 x 1/2 2.25 1.08 0.70 0.80 1.20
1-1/2 x 1-1/2 x 3/4 2.25 1.08 0.70 0.80 1.20
1-1/2 x 1-1/2 x 1 2.25 1.08 0.70 0.80 1.20
2 x 2 x 3/4 2.50 1.30 1.00 1.20 1.65
2 x 2 x 1 2.50 1.30 1.00 1.20 1.65
2 x 2 x 1-1/2 2.50 1.30 1.00 1.20 1.65
3 x 3 x 1-1/2 3.38 1..88 2.40 3.70 4.70
3 x 3 x 2 3.38 1.88 2.40 3.70 4.70
4 x 4 x 1-1/2 4.12 2.38 3.50 6.50 9.00
4 x 4 x 2 4.12 2.38 3.50 6.50 9.00
4 x 4 x 3 4.12 2.38 3.50 6.50 9.00
6 x 6 x 3 5.62 3.40 7.75 16.00 28.50
6 x 6 x 4 5.62 3.40 7.75 16.00 28.50
8 x 8 x 4 7.00 4.40 20.00 25.00 52.70
8 x 8 x 6 7.00 4.40 20.00 25.00 52.70

*M dimension not to Ansi B16.9

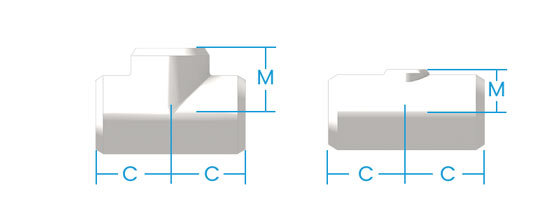

Dimensions of Tees, Long Branch (LB) and Short Outlet (SO)



Nominal Size Dim C Dim M Sch 10 Sch 40
      Weight Weight
3/4 (SO) 1.12 0.65   0.50
3/4 (LB) 1.12 1.12 0.30 0.50
1 (SO) 1.50 0.79 0.25 0.50
1 (LB) 1.50 1.50 0.50 1.00
1 1/2 (SO) 2.25 1.08 1.00 2.00
1 1/2 (LB) 2.25 2.25 1.15 2.50
2 (SO) 2.50 1.31 1.20 2.50
2 (LB) 2.50 2.50 1.60 3.00
3 (SO) 3.38 1.88 1.50 2.60
3 (LB) 3.38 3.38 4.00 8.00
4 (SO) 4.12 2.38 2.10 3.80
4 (LB) 4.12 4.12 5.50
6 (SO) 5.62 3.44 4.60 8.75

*M dimension for short outlet tees (SO) not to Ansi B16.9

Dimensions of Tees, Long Branch (LB) and Short Outlet (SO)

Nominal Size Dim C Dim M Sch 10 Sch 40 Sch 80
      Weight Weight Weight
1/2 (SO) 1.00 0.54     0.27
1/2 (LB) 1.00 1.00 0.25 0.27
3/4 (SO) 1.12 0.65   0.30 0.50
3/4 (LB) 1.12 1.12 0.35 0.35 0.50
1 (SO) 1.50 0.79 0.50 0.55 0.60
1 (LB) 1.50 1.50 0.63 0.63
1-1/2 (SO) 2.25 1.08 0.50 0.80
1-1/2 (LB) 2.25 2.25 1.57 2.00
2 (SO) 2.50 1.31 1.00 1.20 3.00
2 (LB) 2.50 2.50 2.20 2.50
3 (SO) 3.38 1.88 2.20 3.75 5.00
3 (LB) 3.38 3.38 4.00 6.00
4 (SO) 4.12 2.38 3.40 6.50 8.10
6 (SO) 5.62 3.44 7.80 15.75 21.00
8 (SO) 7.00 4.40 18.00 28.00 36.60

*M dimension for short outlet tees (SO) not to Ansi B16.9

Dimensions of Concentric and Eccentric Reducers

Nominal Size Dim H Sch 10 Sch 40
    Weight Weight
3/4 x 1/2 1.50 0.10 0.15
1 x 1/2 2.00 0.20 0.25
1 x 3/4 2.00 0.20 0.25
1-1/2 x 1/2 2.50 0.35 0.50
1 1/2 x 3/4 2.50 0.35 0.50
1-1/2 x 1 2.50 0.35 0.50
2 x 1 3.00 0.50 0.65
2 x 1-1/2 3.00 0.50 0.65
3 X 1 3.50 1.25 2.20
3 x 1-1/2 3.50 1.25 2.20
3 x 2 3.50 1.25 2.20
4 x 2 4.00 1.40 2.50
4 x 3 4.00 1.40 2.50
6 x 3 5.50 2.90
6 x 4 5.50 2.90
8 x 4 6.00 3.00
8 x 6 6.00

Dimensions of Concentric and Eccentric Reducers

Nominal Size Dim H Sch 10 Sch 40 Sch 80
    Weight Weight Weight
3/4 x 3/8 1.50 0.16 0.20 0.40
3/4 x 1/2 1.50 0.16 0.20 0.40
1 x 1/2 2.00 0.20 0.30 0.50
1 x 3/4 2.00 0.20 0.30 0.50
1-1/2 x 1/2 2.50 0.45 0.55 0.65
1-1/2 x 3/4 2.50 0.45 0.55 0.65
1-1/2 x 1 2.50 0.45 0.55 0.65
2 x 3/4 3.00 0.65 0.85 1.00
2 x 1 3.00 0.65 0.85 1.00
2 x 1-1/2 3.00 0.65 0.85 1.00
3 x 1-1/2 3.50 1.70 2.00 2.50
4 x 1-1/2 4.00 1.80 2.50 3.50
4 x 2 4.00 1.80 3.00 3.50
4 x 3 4.00 1.80 3.00 3.50
6 x 3 5.50 6.50 8.00 9.25
6 x 4 5.50 6.50 8.00 9.25
8 x 4 6.00 9.00 13.00 13.00
8 x 6 6.00 9.00 13.00 13.00
8 x 4 6.00 9.00 13.00 13.00

Find product details or view inventory of our pipe tees below and quickly request a quote by entering your desired quantity and clicking the Add to RFQ button. Narrow down the inventory choices by typing material or sizes into the search filter field. Add additional items by navigating through the fittings, fasteners and mill products inventory. Once you are ready to submit your request, simply open the RFQ cart at the bottom of the page and click submit.

Inventory List

Sort by Material
S-01-3010S0750
3/4" S/10S TEE L.B. TI GR 2
In Stock : 36
S-01-3010S1000
1" S/10S TEE LB TI GR 2
In Stock : 22
S-01-3010S1500
1-1/2" S/10S TEE L.B. TI GR 2
In Stock : 24
S-01-3010S2000
2" S/10 TEE LB TI GR 2
In Stock : 5
S-01-3010S3000
3" S/10S TEE LB TI GR 2
In Stock : 9
S-01-3010S4000
4" S/10S TEE L.B. TI GR 2
In Stock : 17
S-01-3040S0500
1/2" S/40 TEE L.B. TI GR 2
In Stock : 22
S-01-3040S0750
3/4" S/40 TEE L.B. TI GR 2
In Stock : 40
S-01-3040S1000
1" S/40 TEE L.B. TI GR 2
In Stock : 76
S-01-3040S1500
1-1/2" S/40 TEE L.B. TI GR 2
Available
S-01-3040S2000
2" S/40 TEE L.B. TI GR 2
In Stock : 14
S-01-3040S3000
3" S/40 TEE L.B. TI GR 2
In Stock : 19
S-01-3110S1000
1" S/10S TEE S.O. TI GR 2
In Stock : 9
S-01-3110S1500
1-1/2" S/10 TEE S.O. TI GR 2
Available
S-01-3110S2000
2" S/10S TEE S.O. TI GR 2
In Stock : 23
S-01-3110S3000
3" S/10S TEE S.O. TI GR 2
In Stock : 12
S-01-3110S4000
4" S/10S TEE S.O. TI GR 2
In Stock : 30
S-01-3110W6000
6" S/10 TEE S.O. WLD TI GR 2
In Stock : 12
S-01-3110W8000
8" S/10 TEE S.O. WLD TI GR 2
In Stock : 5
S-01-3140S1000
1" S/40S TEE S.O. TI GR 2
In Stock : 3
S-01-3140S1500
1-1/2" S/40 TEE S.O. TI GR 2
In Stock : 13
S-01-3140S2000
2" S/40 TEE S.O. TI GR 2
In Stock : 15
S-01-3140S3000
3" S/40 TEE S.O. TI GR 2
In Stock : 12
S-01-3140S4000
4" S/40S TEE S.O. TI GR 2
In Stock : 5
S-01-3140W4000
4" S/40 TEE S.O. WLD TI GR 2
Available
S-01-3140W6000
6" S/40 TEE S.O. WLD TI GR 2
In Stock : 1
S-01-3210S10.05
1 X 1/2 S/10 RED TEE SO TI GR 2
In Stock : 4
S-01-3210S10.75
1 X 3/4 S/10 RED TEE SO TI GR 2
In Stock : 5
S-01-3210S15.10
1-1/2 X 1 S/10S RED TEE SO TI GR 2
In Stock : 3
S-01-3210S20.10
2 X 1 S/10S RED TEE SO TI GR 2
In Stock : 11
S-01-3210S20.15
2 X 1-1/2 S/10S RED TEE SO GR 2
In Stock : 9
S-01-3210S30.10
3 X 1 S/10S RED TEE SO TI GR 2
In Stock : 6
S-01-3210S30.15
3 X 1-1/2 S/10S RED TEE SO TI GR 2
In Stock : 4
S-01-3210S30.20
3 X 2 S/10S RED TEE SO TI GR 2
In Stock : 11
S-01-3210S40.30
4 X 3 S/10S RED TEE SO TI GR 2
In Stock : 13
S-01-3240S10.05
1 X 1/2 S/40 RED TEE SO TI GR 2
In Stock : 2
S-01-3240S10.75
1 X 3/4 S/40 RED TEE SO TI GR 2
In Stock : 5
S-01-3240S15.10
1-1/2 X 1 S/40S RED TEE SO TI GR 2
In Stock : 14
S-01-3240S20.10
2 X 1 S/40S RED TEE SO TI GR 2
In Stock : 8
S-01-3240S20.15
2 X 1-1/2 S/40 RED TEE SO TI GR 2
In Stock : 8
S-01-3240S30.10
3 X 1 S/40S RED TEE SO TI GR 2
In Stock : 9
S-01-3240S30.15
3 X 1-1/2 S/40 RED TEE SO TI GR 2
In Stock : 8
S-01-3240S30.20
3 X 2 S/40S RED TEE SO TI GR 2
In Stock : 13
S-01-3240S40.20
4 X 2 S/40S RED TEE SO TI GR 2
In Stock : 6
S-01-3240S40.30
4 X 3 S/40S RED TEE SO TI GR 2
In Stock : 15
S-01-3240W60.40
6 X 4 S/40 RED TEE SO WLD TI GR 2
In Stock : 5
S-03-3010S1000
1" S/10S TEE LB TI GR 7
In Stock : 8
S-03-3010S1500
1-1/2" S/10S TEE LB TI GR 7
In Stock : 9
S-03-3110S2000
2" S/10S TEE SO TI GR 7
In Stock : 19
S-03-3110S3000
3" S/10S TEE SO TI GR 7
In Stock : 24
S-03-3110S4000
4" S/10S TEE SO TI GR 7
In Stock : 9
S-03-3140S0750
3/4" S/40 TEE SO TI GR 7
In Stock : 17
S-03-3140S1000
1" S/40 TEE SO TI GR 7
In Stock : 24
S-03-3140S1500
1-1/2" S/40 TEE SO TI GR 7
In Stock : 17
S-03-3140S2000
2" S/40 TEE SO TI GR 7
In Stock : 32
S-03-3140S3000
3" S/40 TEE SO TI GR 7
In Stock : 9
S-03-3140S4000
4" S/40 TEE SO TI GR 7
In Stock : 5
S-04-3010S0500
1/2" S/10 TEE LB ZIRC 702
In Stock : 12
S-04-3010S0750
3/4" S/10 TEE LB ZIRC 702
In Stock : 24
S-04-3010S1000
1" S/10S TEE LB ZIRC 702
In Stock : 14
S-04-3010S1500
1-1/2" S/10S TEE LB ZIRC 702
In Stock : 22
S-04-3010S2000
2" S/10S TEE LB ZIRC 702
In Stock : 10
S-04-3040S0500
1/2" S/40S TEE LB ZIRC 702
In Stock : 3
S-04-3040S0750
3/4" S/40S TEE LB ZIRC 702
Available
S-04-3040S1000
1" S/40S TEE LB ZIRC 702
In Stock : 13
S-04-3040S2000
2" S/40S TEE LB ZIRC 702
In Stock : 20
S-04-3040S3000
3" S/40S TEE LB ZIRC 702
In Stock : 8
S-04-3110S1000
1" S/10S TEE SO ZIRC 702
In Stock : 23
S-04-3110S1500
1-1/2" S/10S TEE SO ZIRC 702
In Stock : 14
S-04-3110S2000
2" S/10S TEE SO ZIRC 702
In Stock : 10
S-04-3110S3000
3" S/10S TEE SO ZIRC 702
In Stock : 6
S-04-3110S4000
4" S/10S TEE SO ZIRC 702
In Stock : 3
S-04-3110S6000
6" S/10S TEE SO ZIRC 702
Available
S-04-3110S8000
8" S/10S TEE SO ZIRC 702
In Stock : 5
S-04-3140S0750
3/4" S/40S TEE SO ZIRC 702
In Stock : 9
S-04-3140S1000
1" S/40S TEE SO ZIRC 702
In Stock : 14
S-04-3140S1500
1-1/2" S/40S TEE SO ZIRC 702
In Stock : 20
S-04-3140S2000
2" S/40S TEE SO ZIRC 702
In Stock : 18
S-04-3140S4000
4" S/40S TEE SO ZIRC 702
In Stock : 3
S-04-3140S6000
6" S/40S TEE SO ZIRC 702
In Stock : 2
S-04-3140S8000
8" S/40S TEE SO ZIRC 702
In Stock : 6
S-04-3180S0500
1/2" S/80S TEE SO ZIRC 702
In Stock : 9
S-04-3180S0750
3/4" S/80 TEE SO ZIRC 702
In Stock : 4
S-04-3180S1000
1" S/80S TEE SO ZIRC 702
In Stock : 5
S-04-3180S2000
2" S/80S TEE SO ZIRC 702
In Stock : 7
S-04-3180S3000
3" S/80S TEE SO ZIRC 702
In Stock : 5
S-04-3180S4000
4" S/80S TEE SO ZIRC 702
In Stock : 3
S-04-3180S6000
6" S/80S TEE SO ZIRC 702
In Stock : 2
S-04-3180S8000
8" S/80S TEE SO ZIRC 702
In Stock : 5
S-04-3210S10.05
1 X 1/2 S/10S RED TEE SO ZIRC 702
In Stock : 13
S-04-3210S10.75
1 X 3/4 S/10S RED TEE SO ZIRC 702
In Stock : 6
S-04-3210S15.10
1-1/2 X 1 S/10S RED TEE SO ZIRC 702
In Stock : 6
S-04-3210S20.10
2 X 1 S/10S RED TEE SO ZIRC 702
In Stock : 5
S-04-3210S20.15
2 X 1-1/2 S/10S RED TEE SO ZIRC 702
In Stock : 3
S-04-3210S20.75
2 X 3/4 S/10S RED TEE SO ZIRC 702
In Stock : 3
S-04-3210S30.10
3 X 1 S/10S RED TEE SO ZIRC 702
In Stock : 2
S-04-3210S30.15
3 X 1-1/2 S/10S RED TEE SO ZIRC 702
In Stock : 6
S-04-3210S30.20
3 X 2 S/10S RED TEE SO ZIRC 702
In Stock : 3
S-04-3210S40.20
4 X 2 S/10S RED TEE SO ZIRC 702
In Stock : 1
S-04-3210S40.30
4 X 3 S/10S RED TEE SO ZIRC 702
In Stock : 8
S-04-3210S60.40
6 X 4 S/10S RED TEE SO ZIRC 702
In Stock : 1
S-04-3210S80.60
8 X 6 S/10S RED TEE SO ZIRC 702
In Stock : 2
S-04-3240S10.50
1 X 1/2 S/40S RED TEE SO ZIRC 702
In Stock : 16
S-04-3240S10.75
1 X 3/4 S/40S RED TEE SO ZIRC 702
In Stock : 4
S-04-3240S15.10
1-1/2 X 1 S/40S RED TEE SO ZIRC 702
In Stock : 8
S-04-3240S15.50
1-1/2 X 1/2 S/40S RED TEE SO ZIRC 702
In Stock : 7
S-04-3240S15.75
1-1/2 X 3/4 S/40S RED TEE SO ZIRC 702
In Stock : 5
S-04-3240S20.05
2 X 1/2 S/40S RED TEE SO ZIRC 702
In Stock : 3
S-04-3240S20.10
2 X 1 S/40S RED TEE SO ZIRC 702
In Stock : 22
S-04-3240S20.15
2 X 1-1/2 S/40S RED TEE SO ZIRC 702
In Stock : 11
S-04-3240S20.75
2 X 3/4 S/40S RED TEE SO ZIRC 702
In Stock : 5
S-04-3240S30.10
3 X 1 S/40S RED TEE SO ZIRC 702
In Stock : 9
S-04-3240S30.15
3 X 1-1/2 S/40S RED TEE SO ZIRC 702
In Stock : 11
S-04-3240S30.20
3 X 2 S/40S RED TEE SO ZIRC 702
In Stock : 3
S-04-3240S40.15
4 X 1-1/2 S/40S RED TEE SO ZIRC 702
In Stock : 2
S-04-3240S40.20
4 X 2 S/40S RED TEE SO ZIRC 702
In Stock : 7
S-04-3240S40.30
4 X 3 S/40S RED TEE SO ZIRC 702
In Stock : 5
S-04-3240S60.20
6 X 2 S/40S RED TEE SO ZIRC 702
In Stock : 3
S-04-3240S60.30
6 X 3 S/40S RED TEE SO ZIRC 702
In Stock : 2
S-04-3240S60.40
6 X 4 S/40S RED TEE SO ZIRC 702
In Stock : 1
S-04-3240S75.50
3/4 X 1/2 S/40S RED TEE SO ZIRC 702
In Stock : 6
S-04-3240S80.40
8 X 4 S/40S RED TEE SO ZIRC 702
In Stock : 4
S-04-3240S80.60
8 X 6 S/40S RED TEE SO ZIRC 702
In Stock : 7
S-04-3280S15.10
1-1/2 X 1 S/80S RED TEE SO ZIRC 702
In Stock : 4
S-04-3280S20.10
2 X 1 S/80 RED TEE SO ZIRC 702
In Stock : 4
S-04-3280S30.15
3 X 1-1/2 S/80 RED TEE SO ZIRC 702
In Stock : 4
S-04-3280S30.20
3 X 2 S/80 RED TEE SO ZIRC 702
Available
S-04-3280S40.20
4 X 2 S/80S RED TEE SO ZIRC 702
In Stock : 6
S-04-3280S40.30
4 X 3 S/80S RED TEE SO ZIRC 702
In Stock : 2
S-04-3280S80.60
8 X 6 S/80S RED TEE SO ZIRC 702
In Stock : 4
